Solder seal wire connectors look simple — and they are. But following the correct steps ensures a waterproof, soldered joint every time. Here is exactly how to use solder seal wire connectors with the Haisstronica 340PCS kit from Grabora.
What You Need
- Haisstronica 340PCS solder seal connectors (available from Grabora)
- Wire stripper or sharp knife
- Heat gun (recommended) or lighter/torch
- Heat-resistant gloves (optional but recommended)
Step-by-Step Instructions
Step 1: Strip the Wire
Strip approximately 10mm (3/8 inch) of insulation from each wire end. Ensure the strands are clean, untwisted, and not nicked or damaged.
Step 2: Select the Right Connector Size
Match the connector colour to your wire gauge. The Haisstronica 340PCS kit includes multiple sizes — using the correct one ensures a tight fit and proper solder flow.
Step 3: Insert the Wires
Slide one stripped wire into each end of the connector. Push until the bare wire strands meet in the centre, directly under the solder ring. The insulation should sit inside the heat shrink tubing on both sides.
Step 4: Apply Heat
Using a heat gun, apply heat evenly to the connector:
- Start at the centre where the solder ring sits.
- Heat until you see the solder melt and flow around the wire strands.
- Continue heating outward — the tubing will shrink and the adhesive lining will become visible as it melts.
- Ensure both ends shrink fully and the adhesive seal bonds to the wire insulation.
Using a lighter: Keep the flame moving constantly — do not hold it in one spot. Heat the centre first, then the ends.
Step 5: Inspect the Connection
A properly completed connection shows:
- Solder visible through the transparent section (if applicable)
- Heat shrink tubing shrunk tightly around the wires
- Adhesive seal visible at both ends
- No gaps between the tubing and wire insulation
Step 6: Allow to Cool
Let the connector cool for 30 seconds before handling or bending the wire. The joint is fully set once cool to the touch.
Common Mistakes to Avoid
- Wrong size connector — wires too loose will not solder properly
- Insufficient heat — solder ring must fully melt; partial melting creates weak joints
- Overheating — burning the tubing weakens the seal
- Dirty wires — clean strands solder better than oxidised ones
- Moving too soon — stress the joint before it cools and you weaken the connection

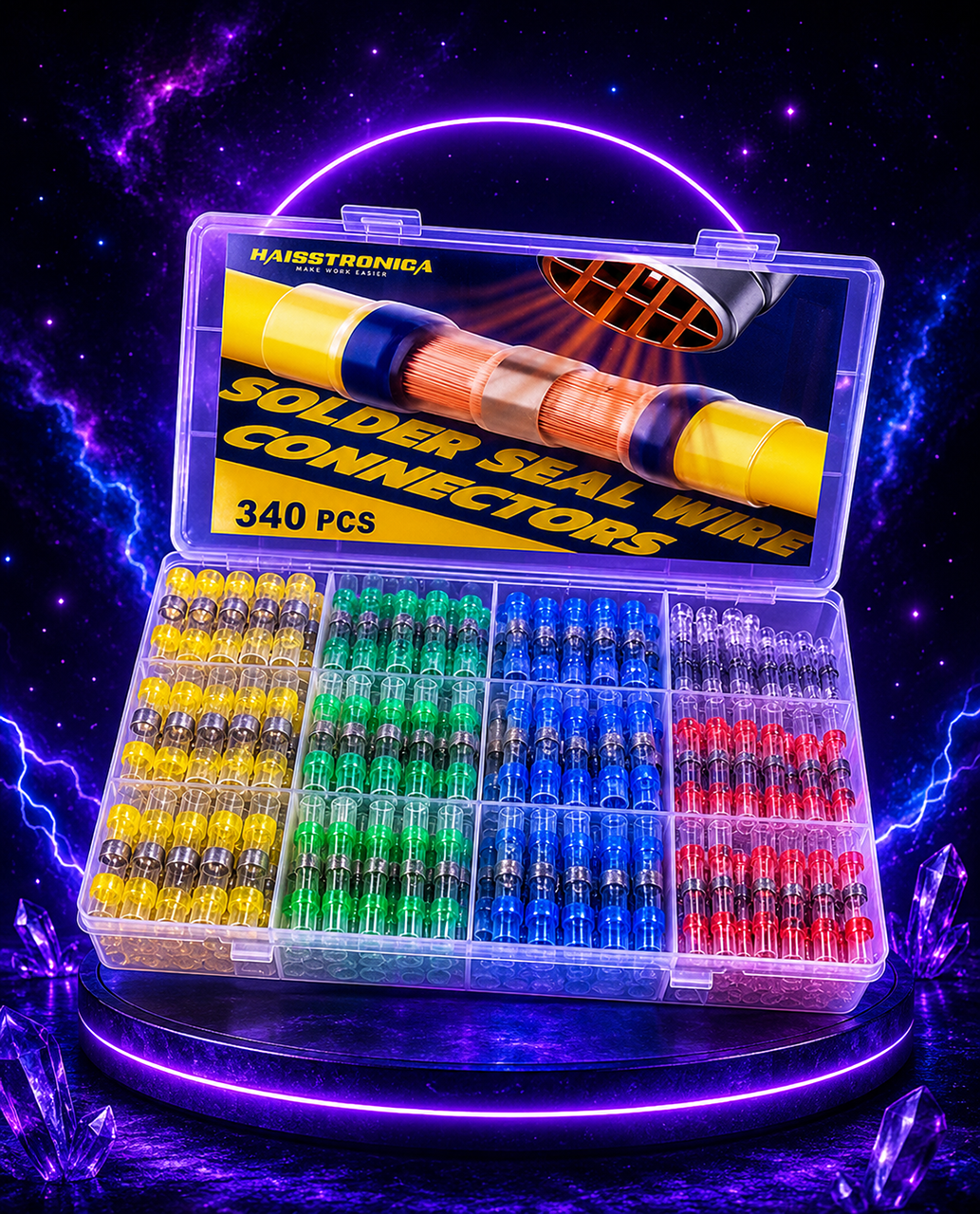

Grabora Haisstronica 340PCS Solder Seal Connectors
Practice makes perfect — and with 340 connectors in the Grabora Haisstronica kit, you have plenty to learn with:
- Waterproof and weatherproof seal
- Built-in solder ring technology
- Corrosion-resistant construction
- 340-piece assorted connector kit
- Quick and reliable wire connections
Frequently Asked Questions
How long does each connection take?
About 30–60 seconds per connector once you are familiar with the process.
Can I redo a connection if I make a mistake?
Cut off the failed connector, re-strip the wire, and use a new connector. Do not reuse a partially melted connector.
Where to buy?
Order at grabora.net.
Connect With Confidence
Now you know how to use solder seal wire connectors — strip, insert, heat, inspect, cool. The Haisstronica 340PCS kit from Grabora gives you 340 chances to get it perfect.
Disconnect power before working on live circuits. Wear eye protection when using a heat gun.
